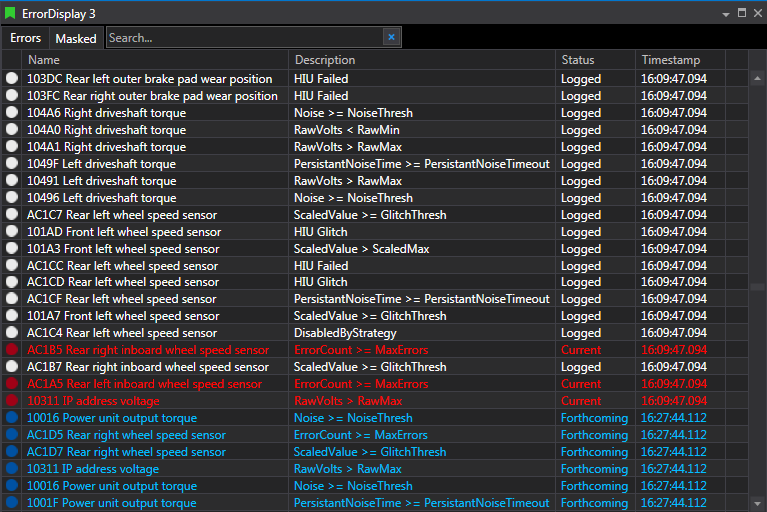

Error Display

ECU errors during live connection. Columns include Status (Forthcoming/Current/Logged, with colours), Name, Description, Timestamp. Double‑clicking an error jumps the timeline cursor to first occurrence. Logged errors persist until ECU reset based on your choice (per Lap or Session).

Adding an Error Display

You can add an Error Display to a Page using any of the following methods: - Display Toolbar: Click the Error Display button. - Menu: Go to File > New > Display and select Error Display. - Quick Access Assistant: Press Ctrl + Q twice, then select New Error Display.

Error Row Details

Each error is displayed as a row with the following columns:

• Status Indicator:
  A coloured symbol representing the error status:

  • Forthcoming: Error expected to occur later in the session.
  • Current: Error is actively occurring (displayed in red).
  • Logged: Error occurred previously but is no longer active (displayed in white).

  Note: The error text colour matches the status indicator.

• Name:
  Displays the error code and name.

• Description:
  Provides a brief description of the error.

• Status:
  Indicates the error's relation to the session timeline:

  • Forthcoming: Will occur later in the session.
  • Current: Actively occurring error.
  • Logged: Previously occurred, now inactive.

• Timestamp:
  Shows the time when the error was first detected.

Error Status Behaviour

• When an error is detected, it appears in red text with a Current status.
• If the sensor returns to normal, the error switches to Logged status and white text.
• Logged errors remain visible and will revert to Current if the same error is detected again.
