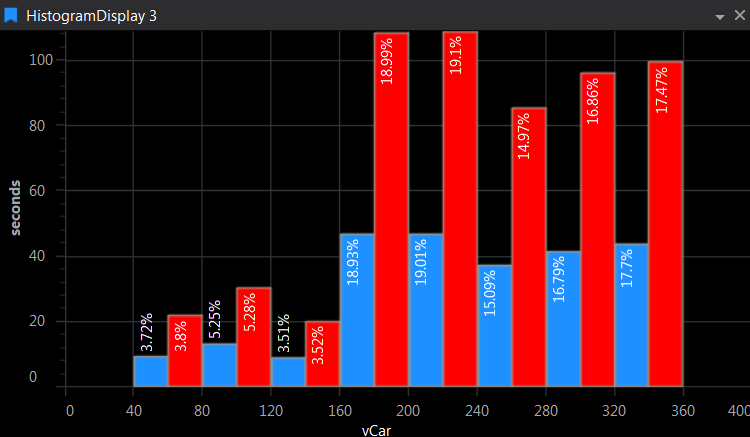

Histogram Dipslay

Distribution of a single parameter against time or distance, either Spectral (time/distance in each bin) or Cumulative (≤ each bin). X‑axis range comes from the parameter’s Display Min/Max. Optional % labels on bars and Y‑axis as % or absolute. Refresh per lap in Live Mode.

Adding a Histogram Display

To add a Histogram Display to a Page do one of the following:

• Click the Histogram Display button on the Display Toolbar.

• Click File > New > Display and select Histogram Display.

• Press Ctrl + Q twice to use the Quick Access Assistant and select New Histogram Display.
