Go To

The Go To feature in ATLAS 10 allows users to quickly navigate to specific laps, markers, or exact positions (by time or distance) within a session. This feature streamlines data exploration and analysis, making it easier to locate and review key moments.

How to Open the Go To Window#

You can access the Go To window in any of the following ways:

  • Click the Go To icon on the ATLAS toolbar.
  • Select View > Go to from the Menu Bar.
  • Use the keyboard shortcut Ctrl + G.

The Go To dialog provides three main navigation options, selectable via a drop-down list:

  1. Laps – Jump to a specific lap in the session.
  2. Markers – Move to a defined marker (point or range) within the session.
  3. Exact Setting – Position the cursor at a precise time or distance.

1. Go To Feature - Laps#

  • The default option is Laps.
  • Select a lap from the drop-down list and click Apply to move the cursor to that lap.
  • OK applies the selection and closes the window; Cancel closes the window without changes.
  • For live or replay sessions, playback will pause and jump to the selected lap.

Go To Laps

2. Go To Feature - Markers#

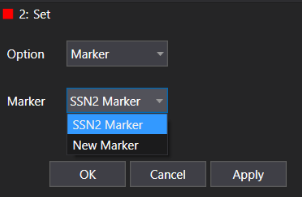

  • Select Marker in the options drop-down to navigate to a session marker.
  • Choose a marker from the list:
    • Range Marker: Cursor moves to the center of the range and waveform zooms to the marker's time base.
    • Point Marker: Cursor moves to the marker point without changing zoom.
  • For live or replay sessions, playback will pause and jump to the selected marker.

Go To Marker

3. Go To Feature - Exact Setting#

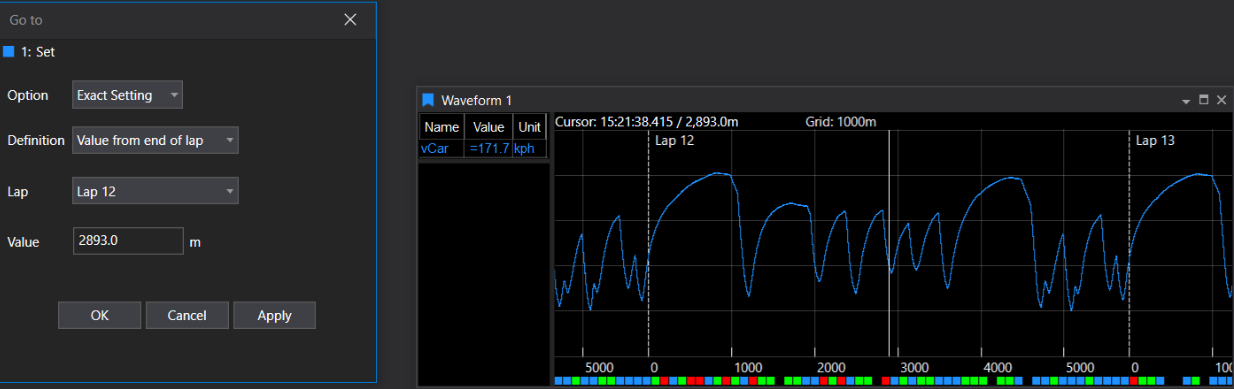

Use the Exact Setting option to move the cursor to a specific time or distance.

Time Mode:

  • Definitions available:

    • Exact Time: Enter a time value to move the cursor directly to that point.
    • Time from start of lap: Enter a time offset from the start of a selected lap.
    • Time from end of lap: Enter a time offset from the end of a selected lap.

  • If the session spans multiple days, a Day drop-down appears for selecting the day.

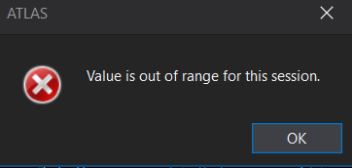

  • If the entered time is out of session range, an error dialog will prompt for a valid value.

Error

Distance Mode:

  • Definitions available:

    • Exact Value: Enter a distance value to move the cursor directly to that point.
    • Value from start of lap: Enter a distance offset from the start of a selected lap.
    • Value from end of lap: Enter a distance offset from the end of a selected lap.

  • If the entered distance is out of session range, an error dialog will prompt for a valid value.

Go To Exact
